Super
Abrasives
Ceramic, PCD, and PCBN cutting tools for the applications where carbide reaches its limit. PCD for non-ferrous, non-metallic applications. Ceramic and PCBN for hardened steels and HRSA superalloy machining.
Precision CNC ground — Sparta, Michigan
Why Engineers Specify Spec Tool
Super abrasive tooling is highly application-specific. Our engineers have been matching the right ceramic, PCD, or PCBN grade to the right application for over 50 years.
Expert Grade Selection
Ceramic, PCD, and PCBN grades each serve different hardness ranges and materials. Our engineers help you select the right solution for your application.

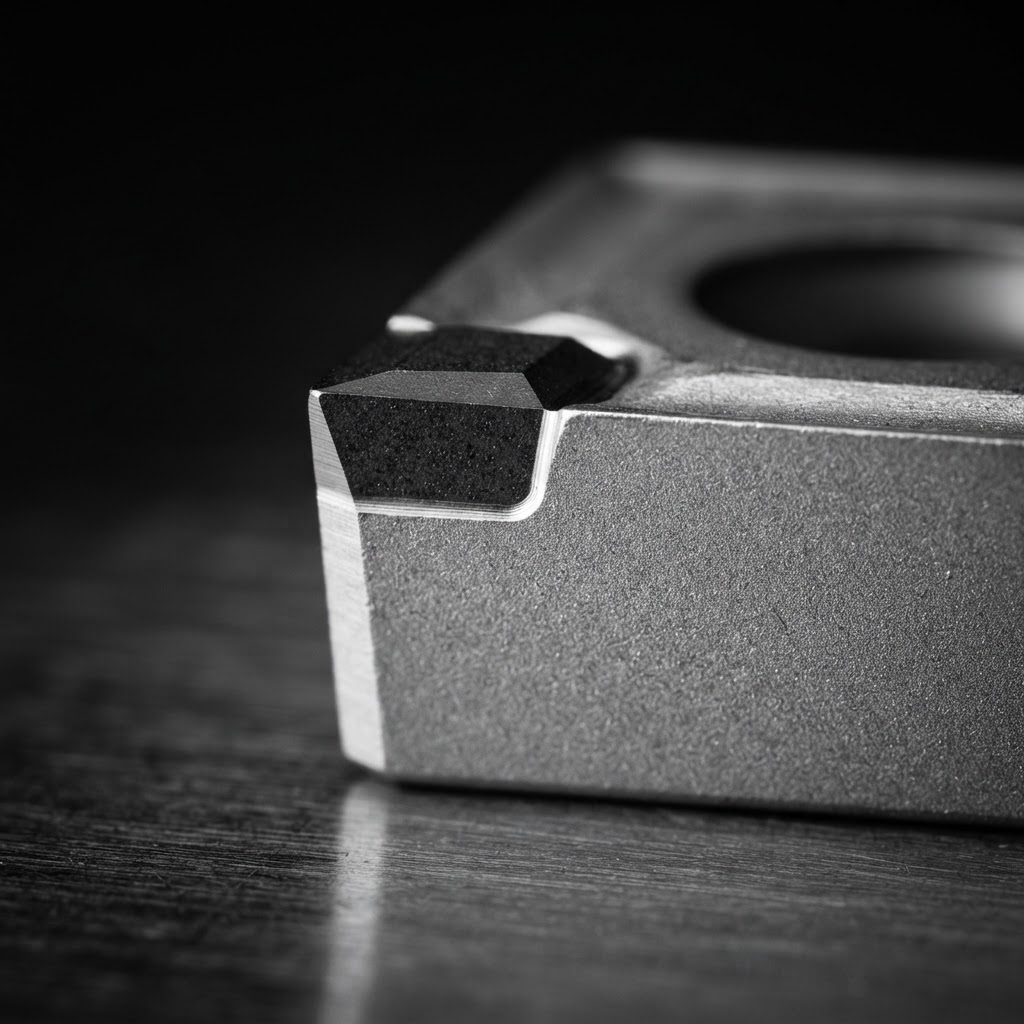

Brazed & Indexable Options
We offer both brazed-tip tooling for maximum stability and indexable formats for high-volume production. Custom geometries are available.
Replace Grinding Operations
PCBN hard turning can eliminate costly grinding cycles. We help evaluate process economics and prove the cut.
Performance Guarantee
Every super abrasive tool ships with our performance guarantee. If it does not outperform your current process, we will make it right.
Super Abrasive Tool Families
Three distinct cutting technologies, each optimized for different material groups and cutting conditions. All available in standard and fully custom configurations.

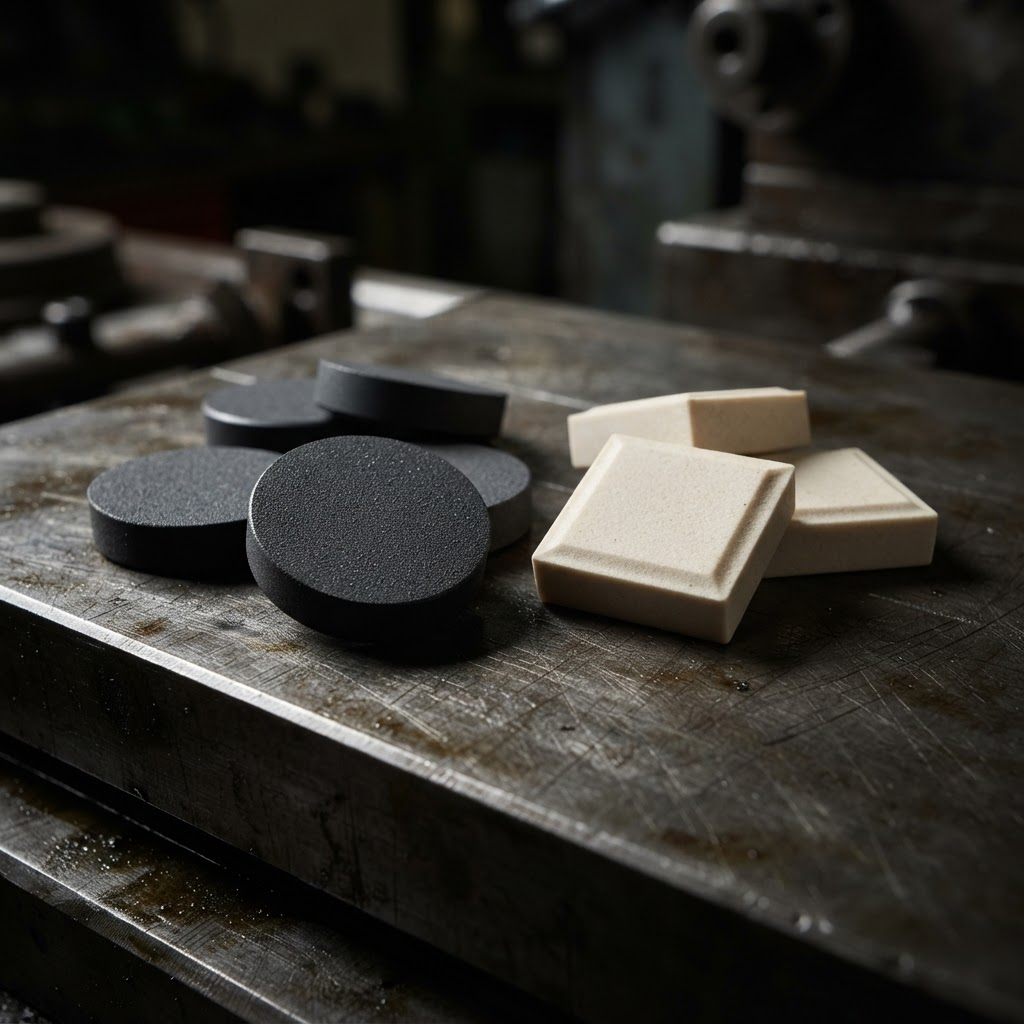

High SpeedCeramic Inserts
High-speed ceramic cutting inserts for hardened steels, cast iron, and nickel-based superalloys. Designed for dry cutting where carbide reaches its limit.
- Alumina (Al₂O₃) and silicon nitride (Si₃N₄) grades
- Cutting speeds: 500–1,800 SFM
- Hardness range: Up to 68 HRC
- ISO geometries: RCGX, SNGX, RNGX, CNGA, DNGA
Non-FerrousPCD Inserts
Polycrystalline diamond (PCD) tipped inserts and tooling for non-ferrous finishing. Exceptional edge life and surface finish in aluminum, copper, and composites.
- PCD grain sizes: .05µm – 45µm
- Cutting speeds: Up to 2,000 SFM
- Edge life: 50–100× carbide in non-ferrous applications
- Available brazed or indexable

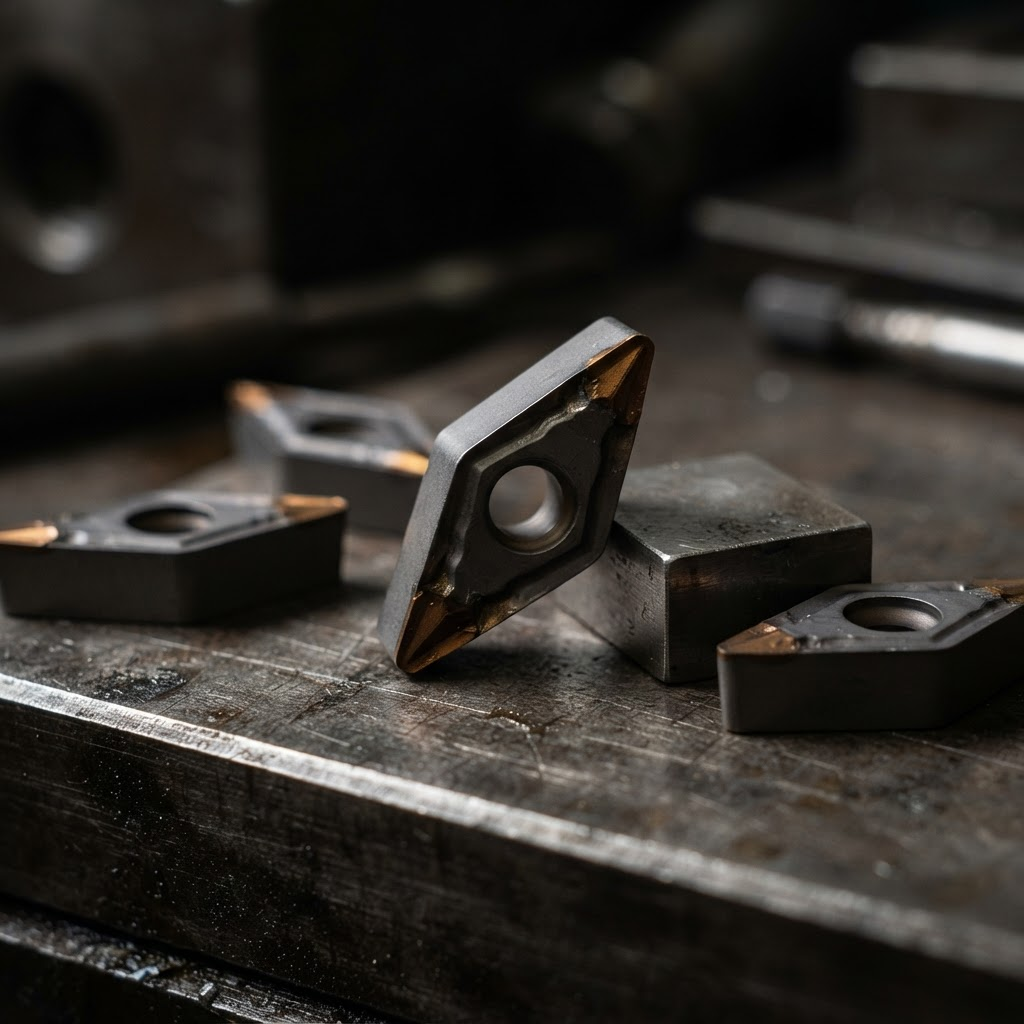

Hard TurningPCBN Inserts
Polycrystalline Cubic boron nitride (PCBN) tipped inserts for hard turning of steels, bearing grades, and powder metals. Replace grinding with hard turning in many applications.
- Low and high PCBN content grades
- Hardness range: 45–70 HRC
- Cutting speeds: 200–1,200 SFM
- Full and tipped PCBN blanks available
A note on pricing ranges
The pricing ranges shown are intended to help with budgeting and setting expectations — not replace a formal quote. Super abrasive tooling pricing varies significantly based on technology, geometry, material, and order quantity. The best way to receive accurate pricing is to describe your application or send us your drawing. Quote turnaround: 24 hours.
Technical Specifications
General capability ranges across our super abrasive product families.
Ready to Discuss Your Application?
Tell us the material you are cutting, the operation, and your current tooling situation. Our engineers will recommend the right super abrasive solution and provide a quote within 24 hours.
Related Product Families
Other cutting tool solutions from Spec Tool
Carbide InsertsCarbide Inserts
Standard and custom carbide turning, milling, and threading inserts for all material groups.
Holders & BodiesHolders and Bodies
Turning holders, milling bodies, and boring bars precision-matched to your inserts.

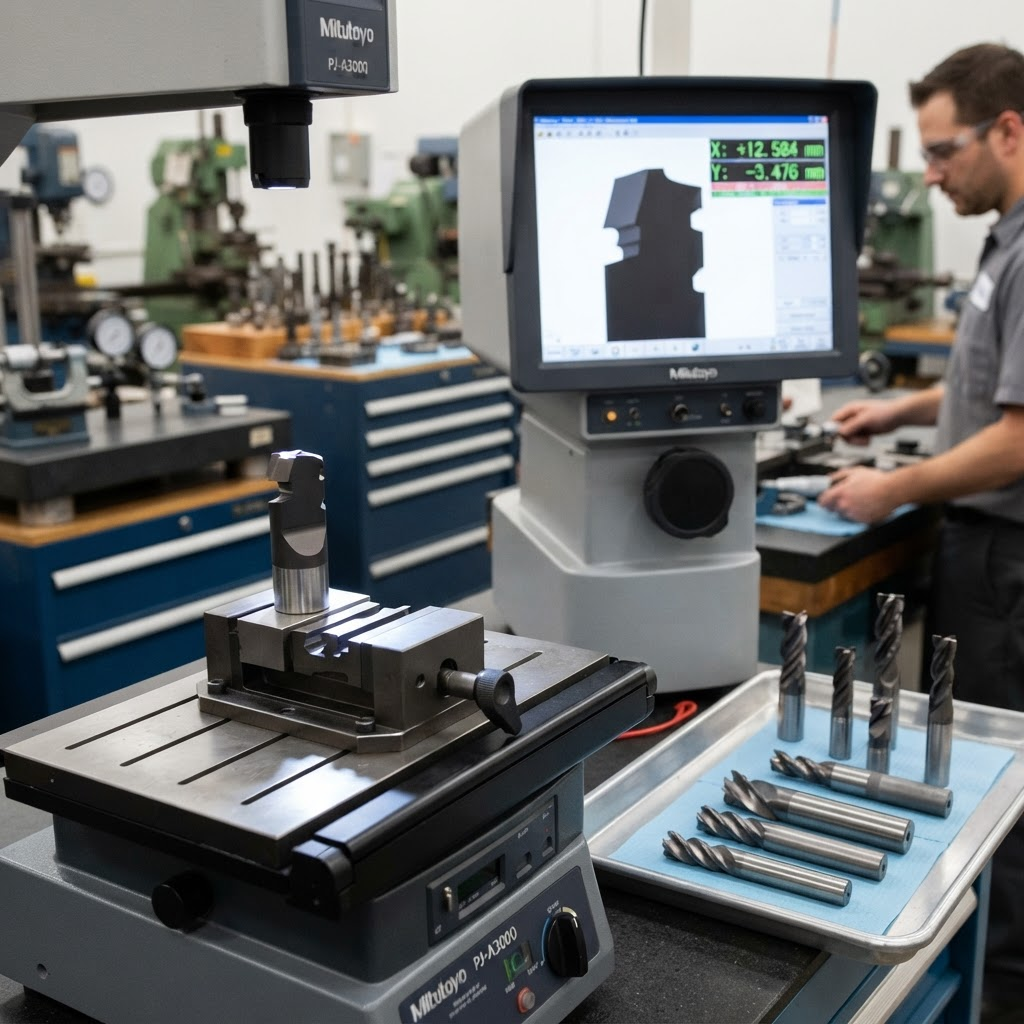

ServicesCustom Tooling Services
